Smooth & Reliable Operation
An internal roller mechanism ensures smooth and consistent operation during every use.
This system provides long-term durability and ease of movement, even in demanding environments.
Manual Gates
HA9000M Manual Sliding Gate
The HA9000M Manual Sliding Gate is a cost-effective cantilever system designed to provide smooth, low-maintenance manual access control for secure perimeter protection.
Cost-Effective Manual Access Control
The HA9000 Cantilever Manual Sliding Gate offers a simple and reliable solution for manually controlling access to unauthorised areas.
It is ideal for sites where automation is not required but secure perimeter control is still essential.
Strong & Secure Design
The gate features a robust construction with 6mm wall thickness aluminium bars fitted as standard for strength and rigidity.
A heavy-duty locking mechanism provides added security, while optional spikes can be fitted to deter unauthorised access.
Flexible Design & Installation
The HA9000M shares the same flexibility as the automatic range, offering a wide choice of infill options including mesh, palisade and louvre designs.
Supplied as a complete unit, the gate is delivered ready to be installed onto pre-prepared concrete plinths for efficient setup.
Technical Specifications
- Specification
- CE Approved BS/EN 12453

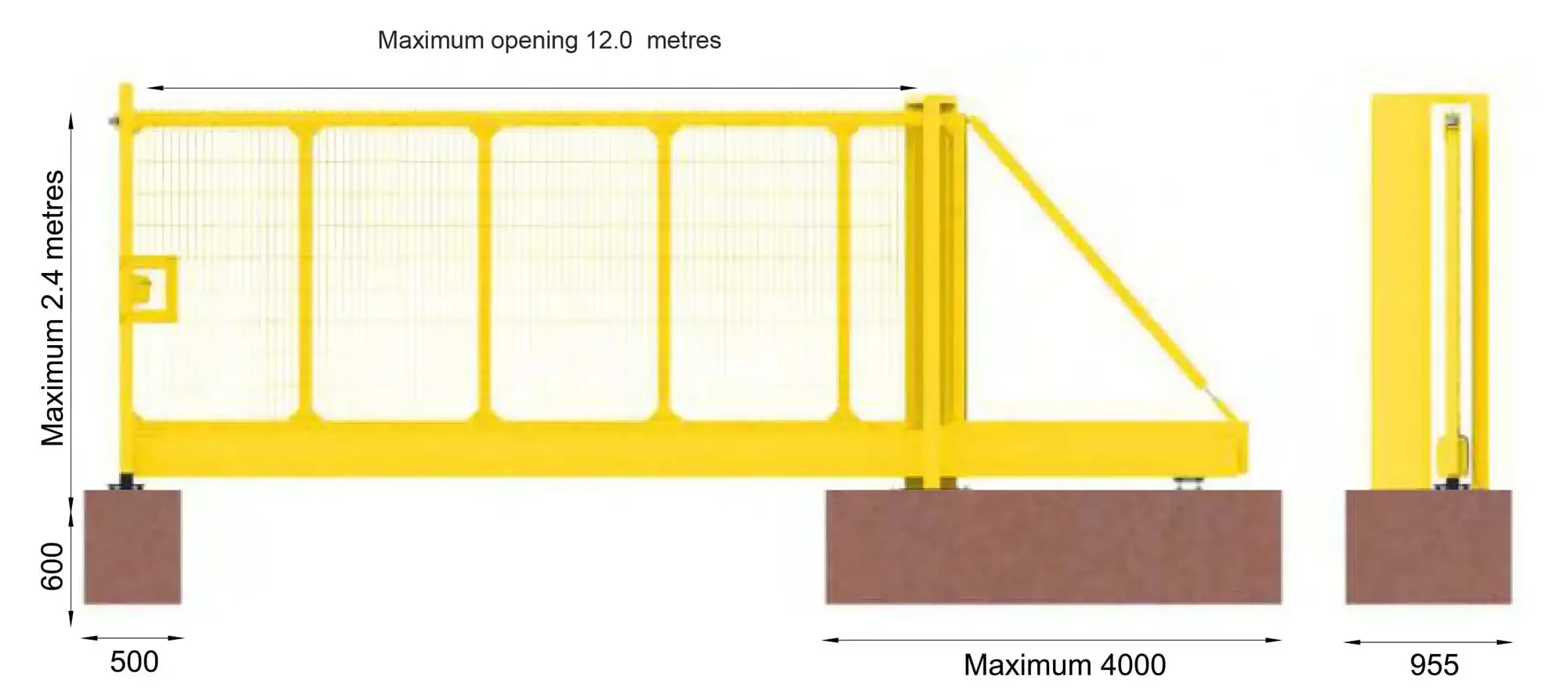

- Maximum Span
- 12 Metres Drive-Through
- Maximum Height
- 2.4 Metres (Max Width 12M)
- Maximum Height
- 3.0 Metres (Max Width 10M)
- Finish
- Dual Compound Epoxy Finish
- Operation
- Manual
- Colours
- All RAL Colours Available
- Dimensions
- 250mm x 225mm Extruded Aluminium Beam
- Infill Dimensions
- Infill – 30mm Dia. x 6mm Wall Thickness

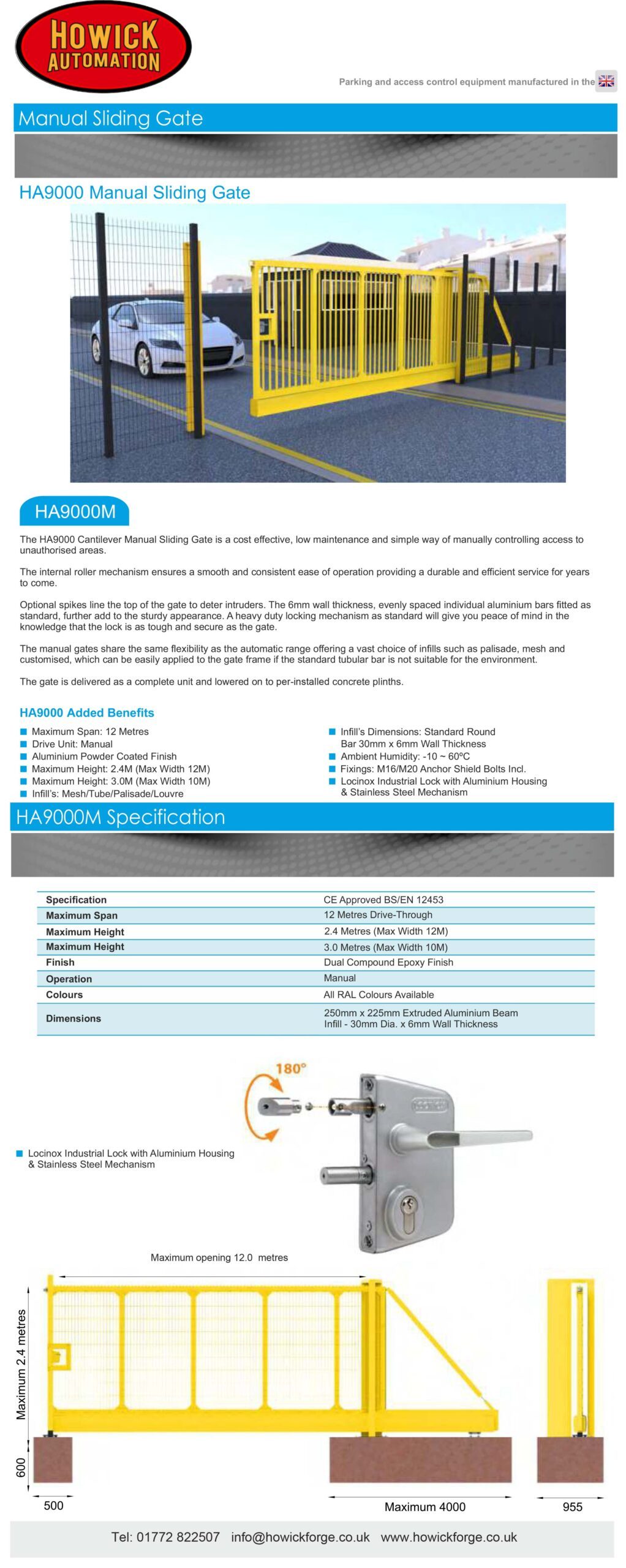

Download Technical Specs
Download the full specification sheet to view detailed dimensions, materials, and technical information for this product.
Manual Sliding Gate for Large Span Access Control
The HA9000M Manual Sliding Gate is designed to provide secure and efficient access control across large openings without the need for automation. Its cantilever design eliminates the need for ground tracks, ensuring reliable operation in all weather conditions.
With a smooth internal roller system and durable aluminium construction, the gate delivers consistent performance with minimal maintenance requirements.
Its flexible design allows for a wide range of infill options and configurations, making it suitable for various commercial and industrial applications.
Large Span Capability
Covers openings up to 12 metres.
Smooth Manual Operation
Internal roller system ensures effortless movement.
Heavy-Duty Security
Robust construction with industrial-grade locking system.

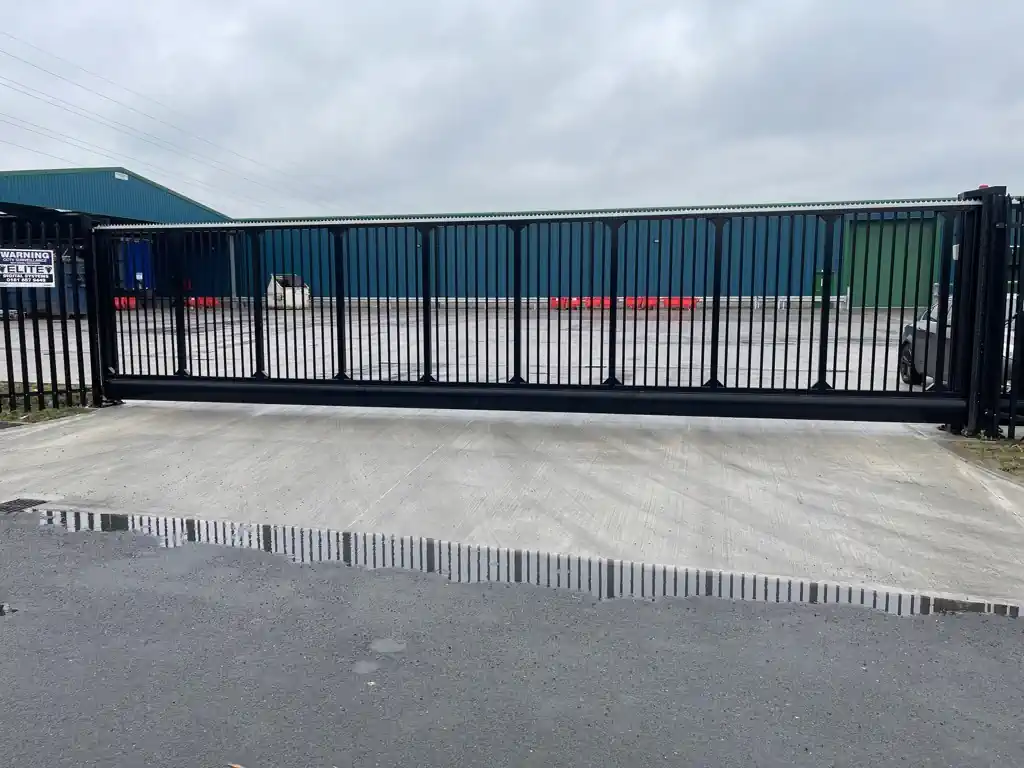

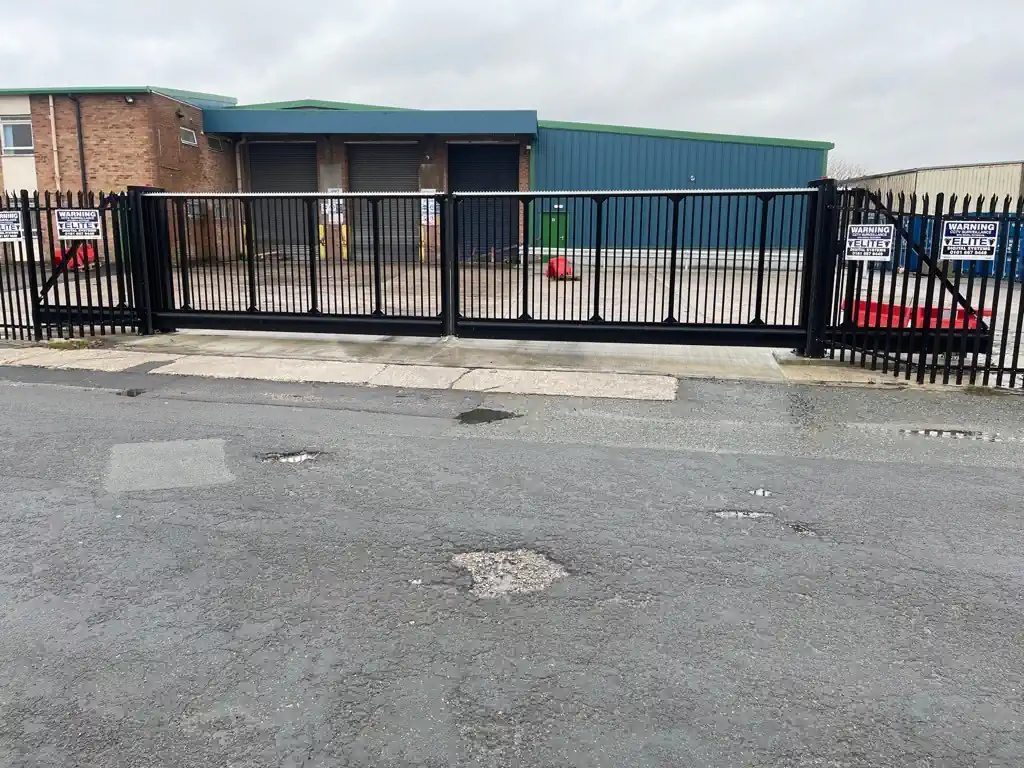

Example Configurations
